AWS Lambda Pricing: How Much it Costs to Run a Serverless Application?
I believe the study of the cost is no longer restricted to procurement. It is an integral part of the software development life cycle. For example, the solution architect needs to understand the cost (visible and hidden) implications of choosing a particular technology.
Software architectures designed on abstractions like containers, orchestration, and serverless (FaaS) increase development velocity and reduce complexity and cost. But the cost of running an application depends on many factors such as choice of database, application adoption, hosting, etc.
Thus the complexity of the cost of an application implies that the organization can’t rely on its development teams to make that decision and needs a hands-on decision-maker. So even though AWS Lambda Pricing is pretty straightforward but the cost of running a serverless application is complex and involves many challenges.
AWS Lambda pricing: an overview
AWS Lambda is a classic example of a series of cloud technology products popularly known as serverless or function-as-a-service or FaaS, as it lets its users run the code without provisioning or managing servers. Like most AWS services, Lambda also doesn’t expire even after the 12 months of signing up.
AWS Lambda is basically a piece of code that runs in an ephemeral container that terminates after serving its purpose i.e., single invocation tasks. Based upon these invocations, you pay only for what you use. Each Lambda function is configured based on the memory size (GB) and execution time measured in milliseconds.
Let’s elaborate on the general pricing model:
- Memory Size (GB): This is the maximum memory size configuration you allocate to your function from the AWS console. This isn’t the actual memory that is used by the function. This suggests that even if you reduce your function’s memory usage but do not tweak this configuration, you won’t be able to observe any reduction in the cost.
- Execution time (ms): This is the actual time that a function takes to execute its code logic. Additionally, for example, if your function is making an outgoing call and is waiting till the response comes, the time spent idle will also be counted in the function’s execution time. The overall duration of the executing functions is calculated from the time your code begins executing until it returns or terminated, rounded up to the nearest 100ms.
To calculate the cost of the each function, both these values are multiplied together to produce a unit GB-sec. Since GB-sec depends on many factors, it is not predictable. Here’s a chart demonstrating the cost of executing 100,000 invocations of a Lambda function over varying times. One must note that the Lambda function’s execution time also depends on the language runtime and third-party dependencies.
Image source here.
AWS Lambda lets you pay only for what you use. Therefore, its pricing depends on the number of requests and the time taken for your code to execute.
How does AWS Lambda pricing work?
AWS Lamba registers a request each time the execution starts in response to event notification triggers or an invoke call, for example, Amazon Simple Notification Service(SNS) or Amazon API Gateway.
Here the duration is calculated from the time code starts executing until it returns, or otherwise the function stops, rounded up to the nearest 1 ms.
The pricing in AWS Lambda is calculated based on the requests and duration.
- AWS Lambda Free Tier: 1 million requests per month, 400,000 GB-seconds of compute time per month.
- $0.20 per 1 million requests thereafter, or $0.0000002 per request.
- 400,000 GB-seconds per month free, up to 3.2 million seconds of computing time
- $0.00001667 for every GB-second used after that.
Data transfer & additional charges:
AWS Lambda function costs for data transferred “in” and “out” of your AWS Lambda functions are free in the same AWS region between services such as Amazon Simple Storage Service (S3), Amazon Glacier, Amazon DynamoDB, Amazon Kinesis, and more.
Additional charges are subject to apply if you use other AWS services or transfer data, for example, reading or writing data to or from Amazon S3. This will add additional costs for reading/writing requests and data stored in S3.
Provisioned concurrency pricing:
You can enable provisioned concurrency in your Lambda functions for greater control over the application performance. It keeps the functions initialized and ready to respond in double-digit milliseconds.
The AWS Lambda provisioned concurrency pricing is calculated from when you enable it on your function until it is disabled, rounded up to the nearest 5 minutes.
The free tier is not applied to functions enabled with provisioned concurrency. For example, provisioned concurrency pricing for the US East region is as follows:
|x86 Price||$0.0000041667 for every GB-second||$0.0000097222 for every GB-second||$0.20 per 1M requests|
|Arm Price||$0.0000033334 for every GB-second||$0.0000077778 for every GB-second||$0.20 per 1M requests|
AWS Lambda is favorable among enterprises because it doesn’t charge for idle resources. Instead, you only pay for what is used.
It charges when the function is invoked with reduced financial risks, beneficial for small businesses and startups.
Note: GB-sec is just a composite unit used to measure AWS Lambda offering. Nor does it showcase gigabyte nor a second.
Lambda pricing vs EC2
Let’s compare the charges between AWS Lambda & EC2 for two different use cases:
#1. Low Compute Use Case
For low compute use cases (such as scheduled CRON jobs, transform on upload, read/write to DynamoDB, serverless authentication) consider the following scenario for our application:
- Allocated memory 512 MB
- No. of invocations: 20,000 times/month
- Execution duration: 1 sec
AWS Lambda Pricing Calculation
GB-sec = 20,000 * 512/1024 = 10,000 GB-sec
Compute charges = 10,000 * $0.00001667 = $0.1667
Request charges = (20,000/1,000,000) * $0.2/Million = $0.004
Total charges = $0.1667 + $0.004 = $0.1707
EC2 Pricing Calculation
Even if we consider the smallest available on-demand instance t2.nano, the monthly cost would be $5.832
#2. High Compute Use Case
For high compute use cases (such as ETL jobs, real-time data processing & video processing) consider the following scenario for our application:
- Allocated memory 2496 MB
- No. of invocations: 30,000,000 times/month
- Execution duration: 500 sec
AWS Lambda Pricing Calculation
GB-sec = 30,000,000 * 0.5s * 2496/1024 = 36,562,500 GB-sec
Compute charges = 36,562,500 * $0.00001667 = $609.5
Request charges = (30,000,000/1,000,000) * $0.2/Million = $6
Total charges = $609.5 + $6 = $615.5
EC2 Pricing Calculation
Considering this as a high-end compute work, even if we consider m4.large with 8GB memory, the monthly cost would be $138.2424
#1. On-demand instances aren’t a suitable option. Lambda is designed for functions that are to be executed rapidly after being triggered by the events. To benefit from the on-demand EC2 instances, you will have to spin up the container manually each time a function is called. Unfortunately, that would add a tremendous amount of processing overhead and slowdown the function. To use EC2, you would need your instance to be already available and waiting for the triggering event, which means 100% instance usage per month. This is going to add a high cost.
#2. Your functions aren’t going to run 100% of the time, and that’s a backbone that is evident behind Lambda’s pricing model. Lambda works best around and below 3 million function executions per month since you’d want to operate in the range where the free executions that come with Lambda still have a noticeable impact on your bill. However, if your traffic starts getting ahead of 3 million, maybe its time to move to EC2. Before that, consider the next observation.
#3. If we observe entirely from the perspective of use cases, AWS Lambda and EC2 have very different implications. As discussed above, AWS Lambda will be a perfect fit for low compute use cases such as serverless authentication, scheduled CRON jobs, chatbots, Alexa skills, and more.
On the other hand, use cases that will need high compute resources such as real-time audio/video transforming, ETL jobs, etc.; EC2 might be a better option. Concluding this, no one size fits all and hence tried and tested approach would be the most suitable.
Amazon API Gateway pricing
Amazon API Gateway charges you only for the APIs which are in use without any upfront fees. You only pay for the number of API calls you receive and the amount of data transferred and caching (if opted). Here’s how:
- Charges for API Calls: $3.50 per million API calls received.
- Data Transfer Costs: First 1 GB free then $0.09/GB for next 9.99 TB.
For example, a regional API received 5 million API calls per month and each API call returns responses of 3 KB in size without caching.
- Amazon API Gateway API Calls charge: 5 million * $3.5/million = $17.50
- Total size of data transfers: 3 KB * 5 million = 15 million/KB = 14.3 GB
- Data transfer charges: 14.3 GB * $0.09 = $1.29
- Total Amazon API Gateway charges: $17.5 + $1.29 = $18.79
The Significance of API Gateway in Serverless Apps
APIs impart an added value to the serverless functions by facilitating normalized access points for system functions, including security and monitoring. Furthermore, considering the event-driven architecture, APIs help functions bridge service modeling among the systems by acting as an http endpoint to trigger your functions.
API Gateway makes a collection of functions look like a single API developed to meet the specific application requirements. In other language, it consolidates the path to all of the system’s commonly used features in the form of an aggregated service.
This approach helps tackle the load of security, orchestration, and transformation of the microservices. It also works as a gateway to forward requests that are authenticated and authorized.
Or as Marco Palladino, CTO at Mashape, explains, “API Gateways works as an abstraction layer that sits on the execution path of every request that goes to one of your functions.” Saying this, API Gateway definitely plays a critical part in any serverless application; however, the cost implications are pretty high as we discuss it in the next session.
How to Build a Scalable Application up to 1 Million Users on AWS
AWS Lambda pricing example: Calculating the price of serverless
Serverless costs is more than pay-per-trigger. This section will analyze the cost of running a serverless demo application and find out how much AWS Lambda and other services actually cost.

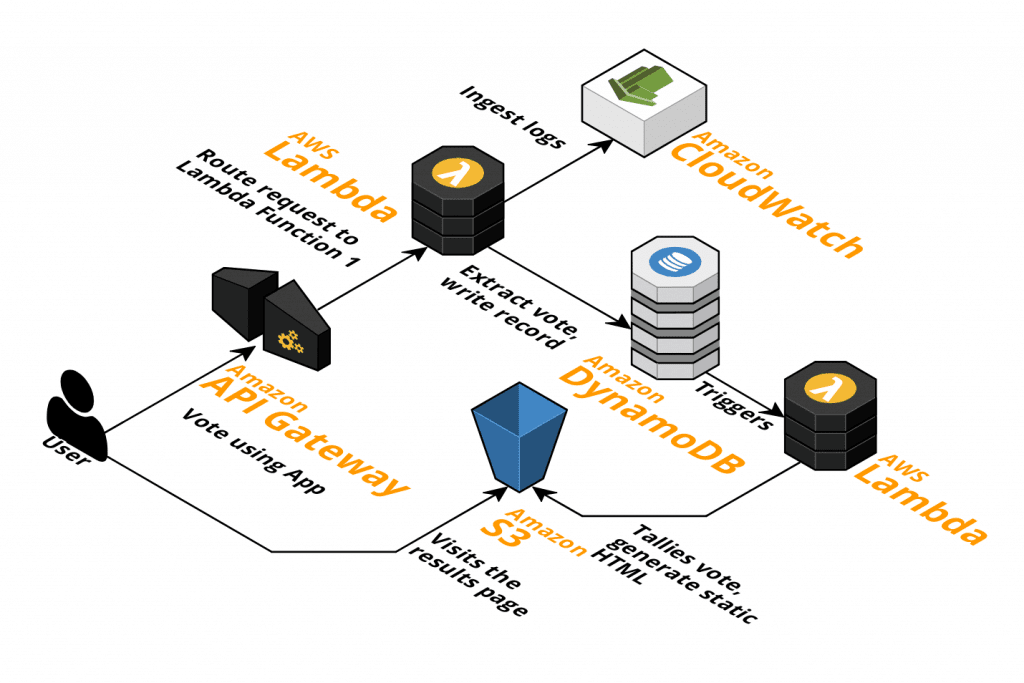

As a demo app, we will be analyzing the Voting App. Here’s the architecture.
Let me walk you through the charges incurred for using the following services:
- API Gateway
- AWS Lambda
- Amazon S3
- CloudWatch Logs
- Network Data Transfer
The Voting App served almost 2 million requests per month. The free tier from all the services has been excluded and pricing is with context to US-EAST-1 region.
#1. API Gateway: The current API Gateway Pricing is $3.50 per million requests, plus data charges. Considering we have 1.5 GB of cache memory and 2 million requests/month, our total cost would be $34.36
#2. AWS Lambda: Since most of the compute work is focused on the 60 lines of code that two of our Lambda function executes, this is where I was expecting huge costing. However, it isn’t. Here we have 2 Lambda functions with 256 MB compute memory, serving 2 million requests/month.
Lambda function 1 executes at 400 ms and Lambda function 2 executes at 500 ms. The total cost will be Lambda Function 1 ($0.20) + Lambda Function 2 ($0.20) = $0.40
#3. DynamoDB: The DynamoDB pricing includes a permanent free tier of up to 25 write units and 25 read units. This means we don’t have any charges for that. We will have to incur the only cost of 1 GB Dataset with strong data consistency. Hence, the overall cost will be $2.81
#4. Amazon S3: This will be storing our static content like HTML, CSS, and Java. The S3 cost for standard storage of 1 GB would be $0.02
#5. CloudWatch Logs: The CloudWatch costs for the service coming from logs being sent to CloudWatch Logs and the storage of these logs. These logs are generated by the AWS Lambda function execution and by API Gateway execution. You can control how much logs you need to generate from AWS Lambda and hence optimize accordingly.
Our demo app ingests 200 MB of data everyday which is monitored over 3 parameters with archival of logs. All this comes down to 3 GB * $0.50 = $1.5 Plus, storage cost of $0.03/GB = $0.09 Hence, total cost = $1.59
What does Serverless really cost?
This all comes down to a monthly cost of $50.14 approximately. The striking thing that we observed is that there are more than just CPU & RAM. For most of the people opting for serverless, the major cost drivers would not be AWS Lambda but API Requests, storage, and network transfers.
Where are the hidden costs?
- API Requests: As discussed in the previous section, it is obvious that our serverless apps are going to be API heavy, and its significance is undeniable. This will cost your around $3.50 per million executions.
- Networking: If you’re sending data in/out, you need to monitor this cost carefully. At $0.50-$0.90 per GB-out and $0.1-$0.2 between VPCs/regions on AWS. This has a high chance of getting really expensive.
- Code Maintenance: Serverless coding equals more lines of code. For each new functionality added to the software system, the number of lines of each function needed to maintain the software’s functionality grows at a steep linear rate. Since shared code is an antipattern, each function has to have its own logic.
- Cold Starts: You may read more about it in our serverless performance blog. Since cold start increases the execution time, it is directly proportional to the cost. Additionally, an added latency of 100 ms can be a driving factor for users to adopt or discard the product for a startup.
3 Questions to consider before jumping into cost optimization
#1. What is the contribution of AWS Lambda costs to your total bill? Serverless applications consist of databases, storage, network costs, APIs, data processing systems, to name a few. Considering the percentage of AWS Lambda cost to the overall application cost, you will have to see whether it is worth running cost optimization cycles or not.
#2. What is your app’s requirement in terms of performance? Before iterating functions memory allocation for lower cost, consider this: memory allocation has a significant impact on the cold start and runtime, both of which are directly proportional to the cost. Hence, opting for degraded performance at a lower cost won’t be a recommended solution if your app requires low latency performance.
#3. Which and how many of the functions of your app are frequently used? Not every one of your functions will be invoked at the same frequency. Hence, focusing cost optimization for high-frequency functions is recommended, for example, functions having hundreds of thousands or millions of invocations.
How to monitor functions for cost optimization?
AWS Lambda gives a fancy picture of a low-cost solution, which is one of the primary reasons behind its accelerated performance.
However, despite the developers keeping a keen eye on the maximum memory size limit and execution time, there are high chances of cost getting out of your control due to various reasons. Some are DDoS attacks, excess memory allocation, or a simple bug in your code bundle.
This inevitable necessitates the requirement of monitoring function efficiently. Here are three basic ways you can get started:
#1. Manual Approach
Depending upon how many functions you have, this may take from minutes to hours. For example, every time your Lambda function is executed, a record prints:
Duration: 1000 ms Billed Duration: 500 ms Memory Size: 1024 MB Max Memory Used: 50 MB
The above record print clearly depicts that the function you’ve executed is just using 50MB out of 1024MB. In such cases, you can save money by allocating 128MB. If you go allocating less memory than this, your function might not execute.
Development teams are attracted to higher memory allotment because more CPU means faster executions and potentially lower cost. Therefore a recommended solution would be to test and iterate your function’s execution time on different memory sizes.
This approach works perfectly for the team with a fewer number of functions since monitoring them is easy. On the other hand, since this requires monitoring of functions on a regular basis, this will take a considerable time if you have many functions.
#2. Cost Explorer
AWS Console provides AWS Cost Explorer through which you can monitor the pricing of various AWS services over a week, month and quarter. Further, you can classify it based on the region, usage type, tag name, etc.
If you have tagged your Lambda functions properly, this will ease your monitoring up to a great extent. You can tally the pricing of your Lambda functions and iterate the changes accordingly. On the other hand, if you haven’t tagged your function properly, AWS Cost Explorer won’t help much. In such cases, what you can do is leverage CloudWatch Alarms to get a notification when a function exceeds the configured limit.
Despite the fact that it helps monitor the cost of Lambdas, it doesn’t give you insight into what is actually wrong and where. This helps figure out whether Lambda costs have increased or not whenever an issue occurs.
#3. 3rd Party Tools
There are many 3rd-party tools that can come in handy. These tools will help you indirectly with cost optimization by efficient and accurate monitoring of your AWS Lambda functions. Some of them are:
Tuning your executing time and memory size will save you a lot on computing resources and costs. However, it is equally critical to keep a sharp eye on functions that can be optimized by tracking its cost in real-time.
Strategies for AWS Lambda cost optimization
There are multiple combinations of usage and configuration that affect Lambda functions’ overall pricing. This can be problematic sometimes!
For example, if you’re working for a small startup, you definitely don’t want to spend $500 over a single Lambda function. Let alone having hundreds of them. So here are few strategies to help you keep your Lambda cost in control:
#1. Optimizing Function Frequency
Various factors affects the invocation frequency of the Lambda function. This is based on the triggers. So closely monitor your triggers and see if you can do to reduce the number of invocations over time.
For example, suppose your Lambda function is being triggered from the Kinesis Stream. Since the batch size is quite small, the invocation frequency is pretty high. In such cases, you can opt for higher batch size so that your Lambda function is invoked less frequently.
#2. Writing Efficient Code
Well, the function that executes in half the time is a function that will cost you half the money. One must note that the execution duration is directly proportional to the amount of money you’ll be charged. Saying that, it is critical to keep an eye on the Duration metric inside the CloudWatch. And it’d be common sense to modify and iterate your function if it is taking a suspiciously long time to execute.
For this purpose, your AWS X-Ray can help you monitor function from end to end.
#3. Monitoring Data Transfer
While talking about Lambda charges, it often gets out of sight that you’ll also be charged for the data transfer at standard EC2 data transfer rates. Hence, it is default to keep an eye on the amount of data you’re transferring out to the internet and other regions of AWS.
While talking about internal data transfer, there isn’t much you can do about it as you can’t control the amount of data your Lambda will transfer. Likewise, there is no metric inside CloudWatch that can help you monitor the data transfer rate.
In such cases, here’s what you can do:
- Keenly monitor your AWS Cost & Usage Report. Filter it by Resource (your Lambda function) and find different values in the Transfer Type column. Further, get the usage amount. This might come off as slightly time-consuming.
- Log the size of data transfer operations in your Lambda code and then configure a CloudWatch Metric Filter as a reference that becomes a CloudWatch Metric.
#4. Developing In-house Tools
If all of the above options aren’t suitable for you and you need a concrete solution that actually works, you can opt for developing in-house tools. Here are some of the examples:
- Real-time Lambda Price Calculator: This is a quick and automated way to monitor estimated monthly cost in real-time of AWS Lambda based on your current usage. For more information, you can look here.
- Memory Metric Filter: This is a simple CloudWatch Logs Metric Filter that can help you in monitoring by extracting memory size and allocated memory from the execution records. Launch Stack here and get started.
Want to develop an application on the AWS stack?
All that being said, one thing is for sure, mapping out your requirements and how much it will cost to bring your idea into reality is the first step towards getting started with serverless architecture. No one size fits all! For some organizations, serverless is helping in cutting down cost with a huge margin while others are probably looking for more comprehensive options considering the hidden costs of serverless.
Though notable thing is that every serverless provider offers you free tiers that can be sufficient for you for the time being, provided you have a smaller workload. Ultimately, serverless offers a huge cost and time-saving potential if done right.
To avoid any surprises, it’d be better to deep dive and analyze the potential of your serverless application. I’d love to hear what has been your experience with serverless costs. Drop me an email at email@example.com or connect with me on Twitter @RohitAkiwatkar
